DIERS 4D posture Lab

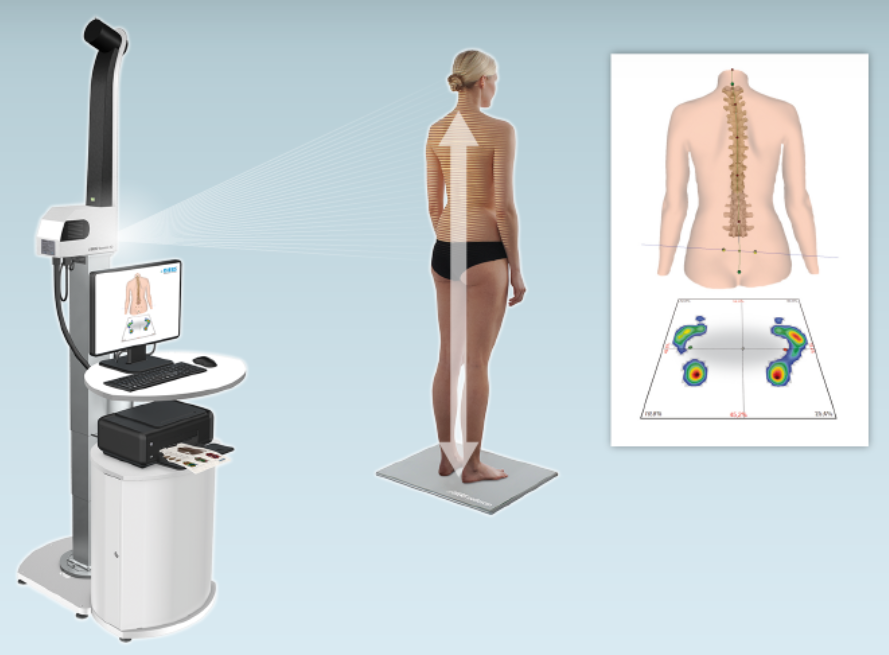

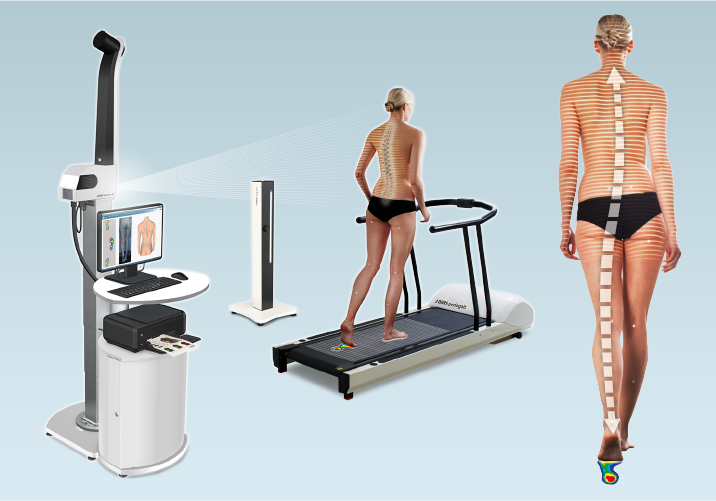

The DIERS formetric 4D and DIERS pedoscan systems are designed to work together, providing a comprehensive, radiation-free biomechanical assessment of the entire body from spine to feet. This integrated approach is particularly valuable for diagnosing postural issues and planning treatments like custom orthotic insoles.diers+3

  • Compact Dimensions
  • 2-in-1 Solution
  • Fast Examination Procedure
  • High Economic Efficiency
Watch Video
Download Brochure

2-in-1 Solution

DIERS formetric 4D + DIERS pedoscan

DIERS formetric 4D

3D/4D Spine & Posture Analysis

DIERS formetric 4D

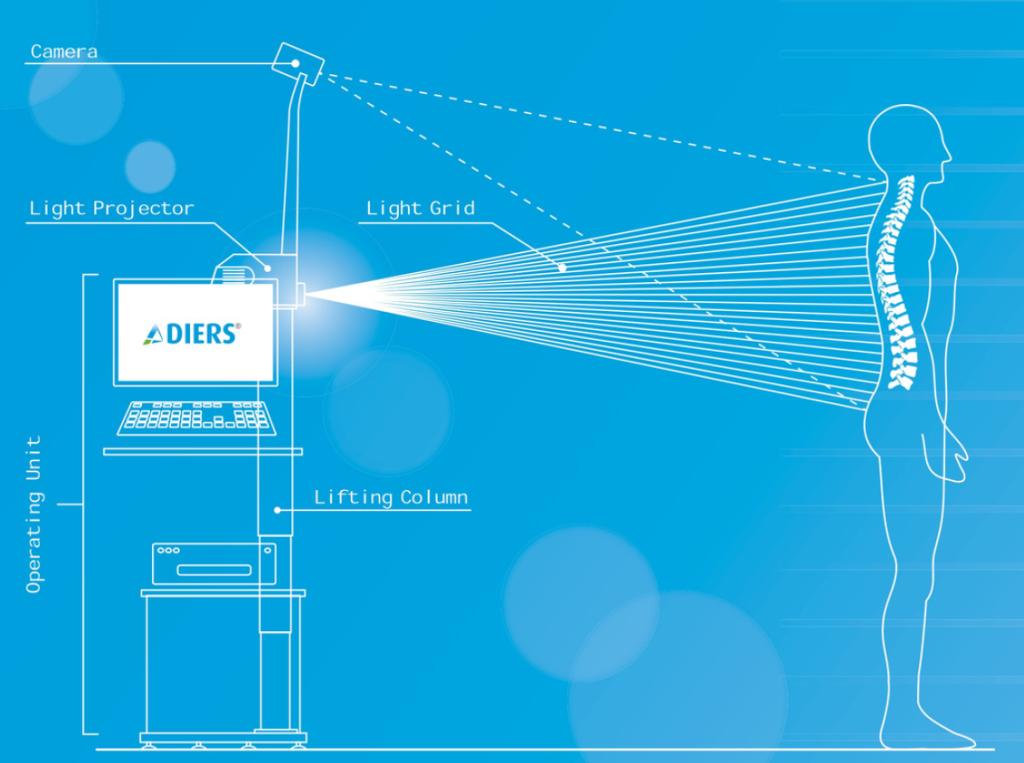

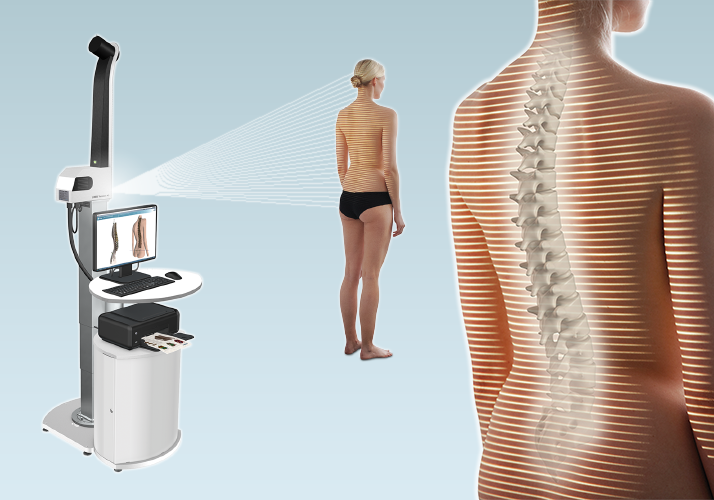

The DIERS formetric 4D uses Video-Raster-Stereography (VRS) to create a detailed 3D model of the patient’s back surface. A projected light grid is captured by a camera and analyzed by software to assess spinal posture and alignment without physical contact.

DIERS pedoscan

Static and Dynamic Foot Pressure Measurement

DIERS pedoscan

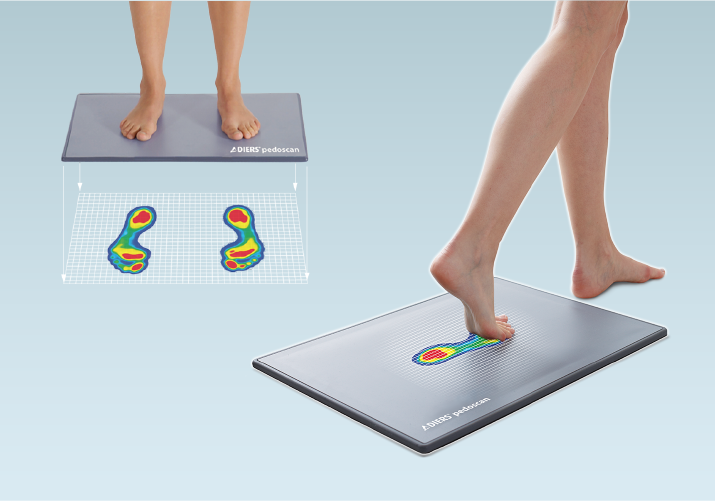

The DIERS pedoscan quickly and accurately captures and displays foot pressure distribution during both standing and walking, enabling precise assessment of foot loading and gait.

Key Features

Short & Crisp Version

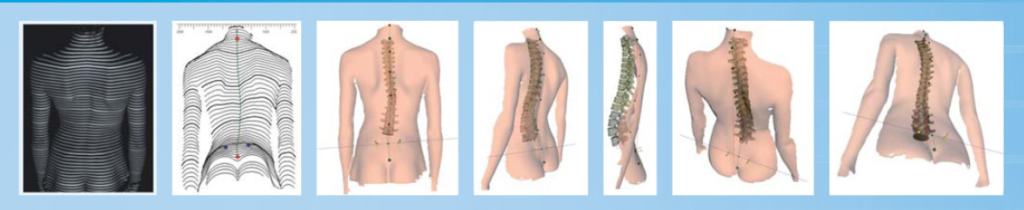

DIERS Formetric uses Moire Topography, optical triangulation, and photogrammetry to create a 3D model of the spine and back surface.

A light projector and camera capture the patient’s back, while advanced software analyzes spinal curvature, vertebral rotation, pelvic position, and posture.

Key Advantage: Unlike X-rays, it is radiation-free and provides comprehensive posture and spine analysis, helping identify spinal and muscular imbalances.

Technical Specifications

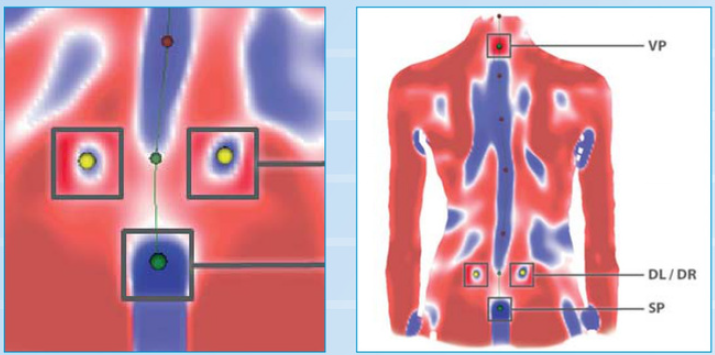

Automatic Anatomical Landmark Detection

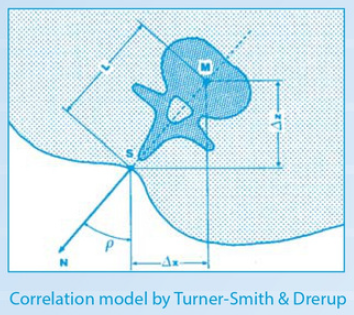

The system automatically identifies key anatomical landmarks using surface-curvature analysis to reconstruct the spine.

Benefit: No manual markers are generally required.

4D Technology

4D Technology (3D + Time) enhances the DIERS Formetric system with fast, accurate, and reproducible measurements.

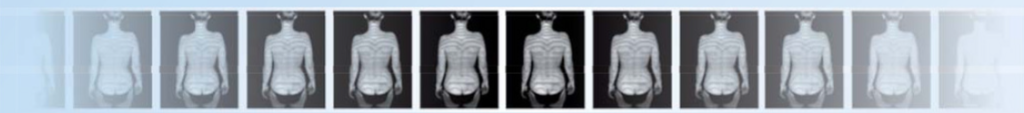

  • Ultra-short exposure minimizes motion artifacts.
  • Image averaging compensates for natural body sway.
  • Enables dynamic posture and functional tests over time.

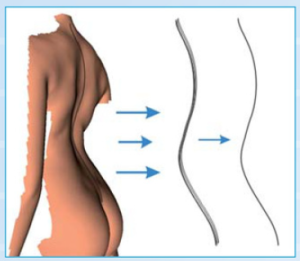

3D Spine Reconstruction

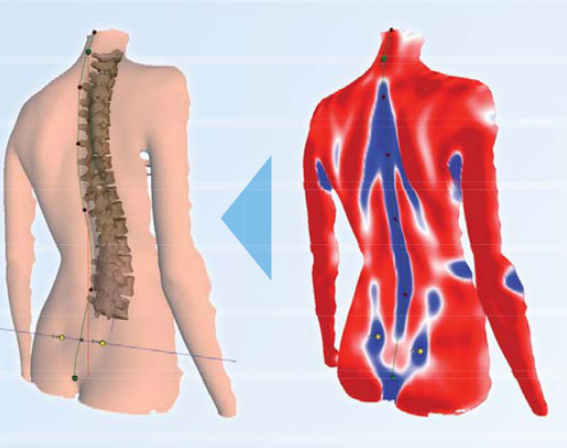

Uses surface-curvature analysis to create a 3D model of the spine, showing spinal curvature and individual vertebral rotation.

About the Company

Founded in 1996 in Germany, DIERS International develops advanced biomechanical analysis systems for holistic assessment of posture and movement. Through close collaboration with universities, physicians, and specialists, DIERS combines scientific expertise with innovative technology.

Today, DIERS is a global leader in optical 3D/4D posture and locomotion analysis, offering solutions that support diagnosis and therapy planning, including exercise programs and therapeutic insoles.
